Products

Meta-Lax® Products:
Better ROI Than Traditional Stress Relief Options


Meta-Lax Control Consoles



Meta-Lax® Products: Control Consoles & Force Inducers | Bonal Technologies - 2800(1)

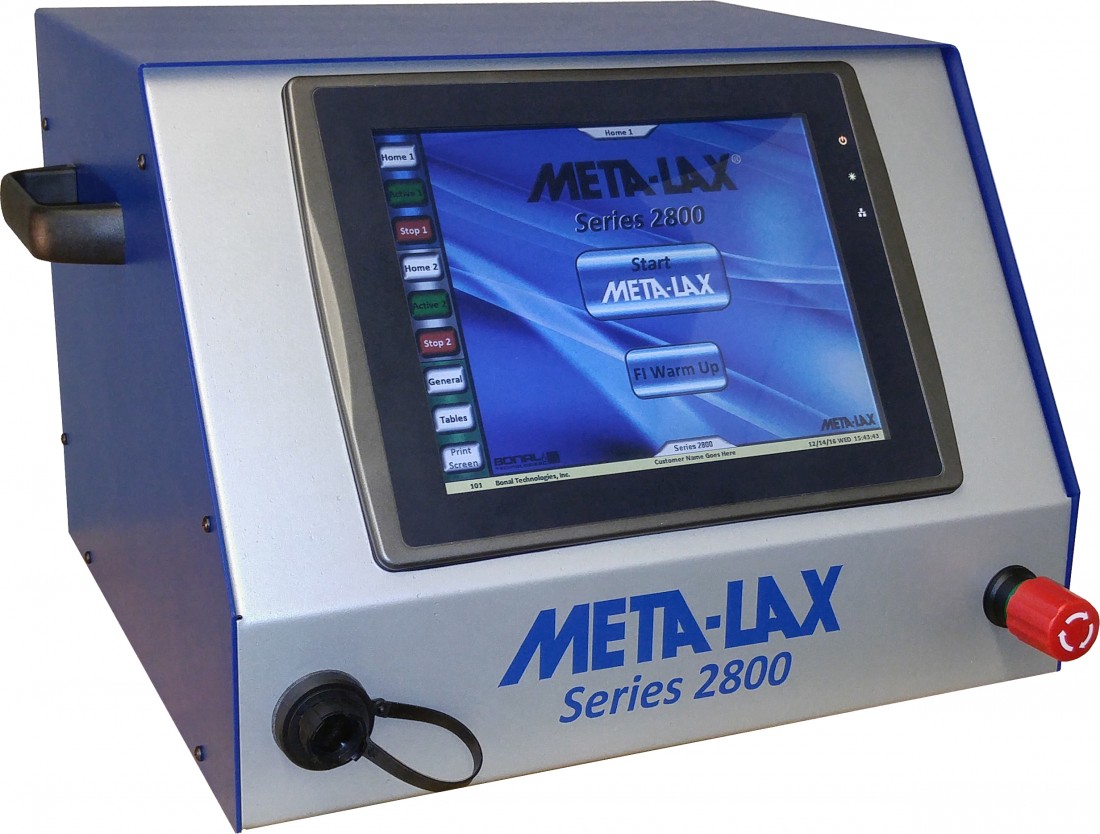

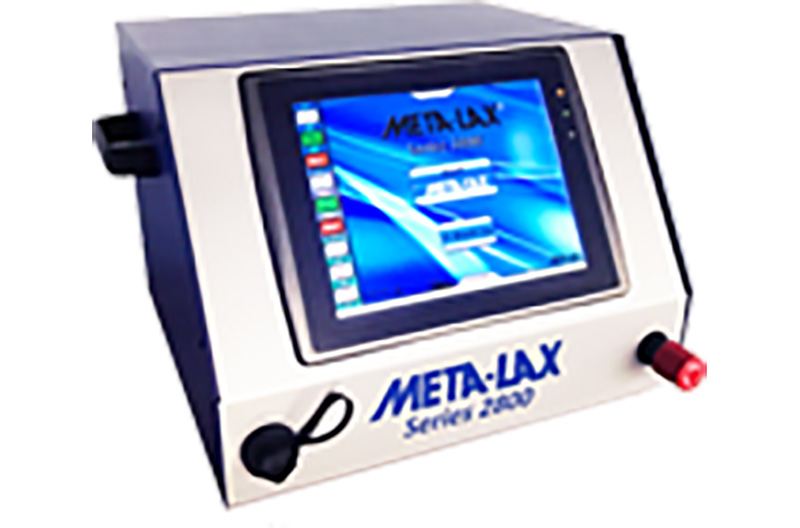

Series 2800 - Most User-Friendly
  • Computer Controlled with Touch Screen Display
  • Performs Automatic Stress Relief & Weld Conditioning for ultimate ease of use, with real-time adjustments
  • 10" HD touch screen display
  • USB port saves up to 50,000 jobs per flash drive for printing certification
  • Saves 500 customer and part profiles
  • Six onboard reference tables
  • Your company Logo prints on certification sheets

Download Series 2800 Spec Sheet

Meta-Lax® Products: Control Consoles & Force Inducers | Bonal Technologies - 2401

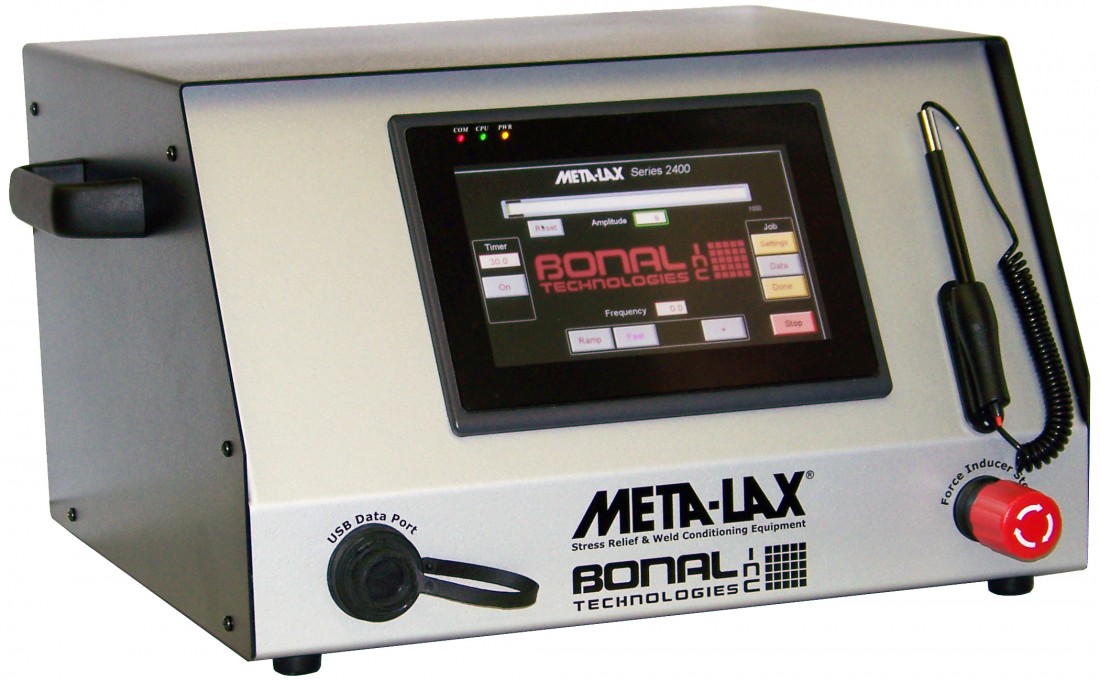

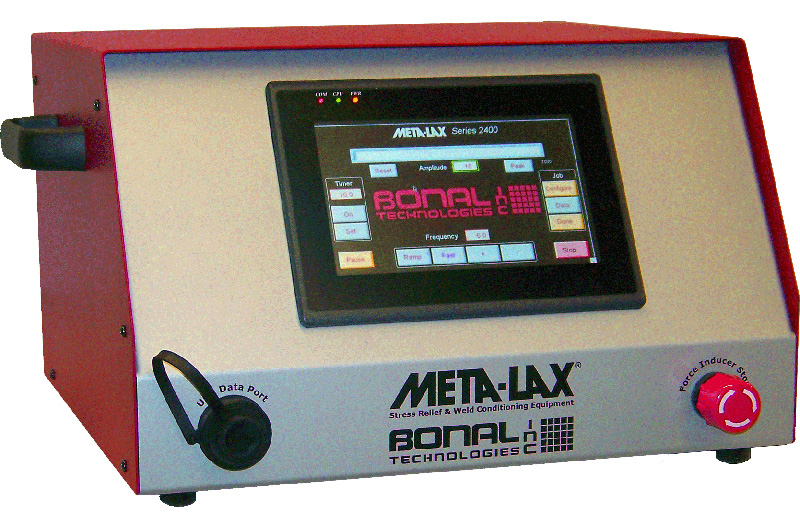

Series 2401 - Economical with Graphic Certification
  • Touch Screen Controls with Graphic Certification
  • Performs Semi-Automatic Stress Relief & Weld Conditioning
  • 7" high def color touch screen control panel
  • Graphic and Manual Certification
  • USB port saves up to 50,000 jobs per flash drive for printing certification
  • Three languages; English, French, and Spanish

Download Series 2401 Spec Sheet

Meta-Lax® Products: Control Consoles & Force Inducers | Bonal Technologies - 2000

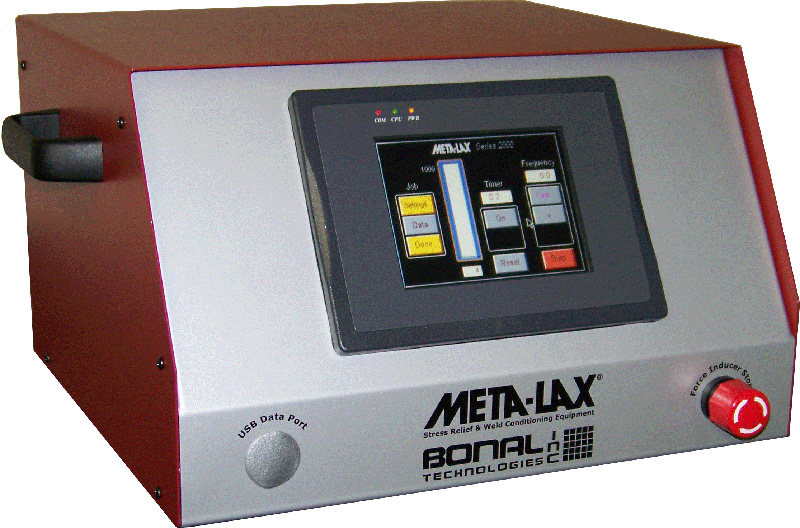

Series 2001 - Most Economical
  • Features Manual Certification
  • Lowest cost Meta-Lax System
  • Performs Manual Stress Relief & Weld Conditioning
  • 5" color touch screen control panel
  • Three languages; English, French, and Spanish

Download Series 2001 Spec Sheet



Force Inducer Choices


Meta-Lax® Products: Control Consoles & Force Inducers | Bonal Technologies - 1f

1F
60 - 500 lbs.
(27-115 kg)

Meta-Lax® Products: Control Consoles & Force Inducers | Bonal Technologies - fd

FD
Customized
up to 7,000 lbs. (3,175 kg)

Meta-Lax® Products: Control Consoles & Force Inducers | Bonal Technologies - 2A

V8(i)
100 - 20,000 lbs.
(55-9000 kg)

Meta-Lax® Products: Control Consoles & Force Inducers | Bonal Technologies - 2A

2A(i)
150 - 40,000 lbs.
(70-18,160 kg)

Meta-Lax® Products: Control Consoles & Force Inducers | Bonal Technologies - 3a

3A(i)
20,000 lbs.+
(9,080+ kg)

Note 1: All Force Inducers can stress relieve and weld condition parts smaller than their minimum workload, as long as each part is clamped onto other parts, or to a vibration platform, to bring the total weight into the Force Inducer's load range.

Note 2: In Meta-Lax, treating extremely rigid workpieces, like molds, reduce Force Inducer's load capacity by 50%.

View Equipment Selection Guide
